图片	型号	电压	技术	电流	VCE(sat) Tvj=25°C typ	VF Tvj=25°C typ	封装结构	长宽	宽度
	FF100R12KS4	1200 V	IGBT2 Fast	100 A	3.2 V	2 V	62 mm	106.4 mm	61.4 mm
	FF150R12KT3G	1200 V	IGBT3 - T3	150 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF150R12KE3G	1200 V	IGBT3 - E3	150 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF150R17KE4	1700 V	IGBT4 - E4	150 A	1.95 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF150R12KS4	1200 V	IGBT2 Fast	150 A	3.2 V	2 V	62 mm	106.4 mm	61.4 mm
	FF150R12KS4_B2	1200 V	IGBT2 Fast	150 A	3.2 V	2 V	62 mm	106.4 mm	61.4 mm
	FF200R12KT3	1200 V	IGBT3 - T3	200 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF200R12KT3_E	1200 V	IGBT3 - T3	200 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF200R12KT4	1200 V	IGBT4 - T4	200 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF200R12KE4	1200 V	IGBT4 - E4	200 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF200R12KE4P	1200 V	IGBT4 - E4	200 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF200R12KE3	1200 V	IGBT3 - E3	200 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF200R06KE3	600 V	IGBT3 - E3	200 A	1.45 V	1.55 V	62 mm	106.4 mm	61.4 mm
	FF200R17KE3	1700 V	IGBT3 - E3	200 A	2 V	1.8 V	62 mm	106.4 mm	61.4 mm
	FF200R12KS4	1200 V	IGBT2 Fast	200 A	3.2 V	2 V	62 mm	106.4 mm	61.4 mm
	FF200R12KS4P	1200 V	IGBT2 Fast	200 A	3.2 V	2 V	62 mm	106.4 mm	61.4 mm
	FF300R12KT3P_E	1200 V	IGBT3 - T3	300 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R12KT3_E	1200 V	IGBT3 - T3	300 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R12KT3	1200 V	IGBT3 - T3	300 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R12KT4P	1200 V	IGBT4 - T4	300 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R12KT4	1200 V	IGBT4 - T4	300 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R06KE3	600 V	IGBT3 - E3	300 A	1.45 V	1.55 V	62 mm	106.4 mm	61.4 mm
	FF300R12KE3	1200 V	IGBT3 - E3	300 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R06KE3_B2	600 V	IGBT3 - E3	300 A	1.45 V	1.55 V	62 mm	106.4 mm	61.4 mm
	FF300R07KE4	650 V	IGBT4 - E4	300 A	1.55 V	1.55 V	62 mm	106.4 mm	61.4 mm
	FF300R17KE4	1700 V	IGBT4 - E4	300 A	1.95 V	1.8 V	62 mm	106.4 mm	61.4 mm
	FF300R12KE4_E	1200 V	IGBT4 - E4	300 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R12KE4P	1200 V	IGBT4 - E4	300 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R12KE4	1200 V	IGBT4 - E4	300 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R12KE4_B2	1200 V	IGBT4 - E4	300 A	1.75 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF300R17KE4P	1700 V	IGBT4 - E4	300 A	1.95 V	1.8 V	62 mm	106.4 mm	61.4 mm
	FF300R12KS4P	1200 V	IGBT2 Fast	300 A	3.2 V	2 V	62 mm	106.4 mm	61.4 mm
	FF300R12KS4	1200 V	IGBT2 Fast	300 A	3.2 V	2 V	62 mm	106.4 mm	61.4 mm
	FF400R12KT3P_E	1200 V	IGBT3 - T3	400 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF400R12KT4P	1200 V	IGBT4 - T4	400 A	1.65 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF400R07KE4	650 V	IGBT4 - E4	400 A	1.55 V	1.55 V	62 mm	106.4 mm	61.4 mm
	FF400R17KE4_E	1700 V	IGBT4 - E4	400 A	1.95 V	1.8 V	62 mm	106.4 mm	61.4 mm

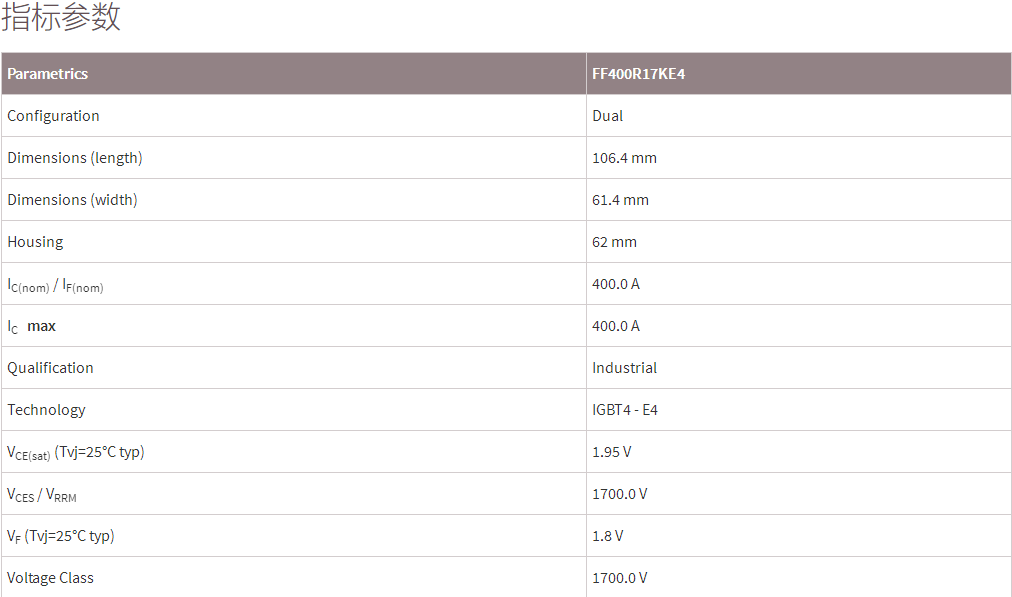

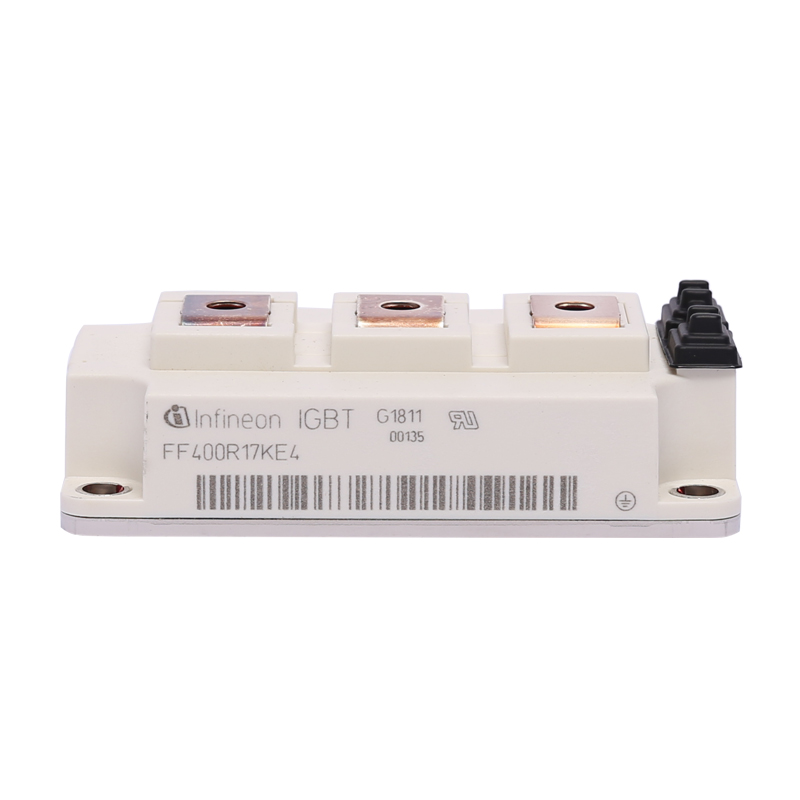

	FF400R17KE4	1700 V	IGBT4 - E4	400 A	1.95 V	1.8 V	62 mm	106.4 mm	61.4 mm
	FF400R12KT3_E	1200 V	IGBT3 - T3	400 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF400R12KT3	1200 V	IGBT3 - T3	400 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF400R12KE3_B2	1200 V	IGBT3 - E3	400 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF400R12KE3	1200 V	IGBT3 - E3	400 A	1.7 V	1.65 V	62 mm	106.4 mm	61.4 mm
	FF400R06KE3	600 V	IGBT3 - E3	400 A	1.45 V	1.55 V	62 mm	106.4 mm	61.4 mm
	FF450R12KT4	1200 V	IGBT4 - T4	450 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
	FF450R12KT4P	1200 V	IGBT4 - T4	450 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
	FF450R12KE4	1200 V	IGBT4 - E4	450 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
	FF450R12KE4_E	1200 V	IGBT4 - E4	450 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
	FF450R12KE4P	1200 V	IGBT4 - E4	450 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
	FF500R17KE4	1700 V	IGBT4 - E4	500 A	1.95 V	1.95 V	62 mm	106.4 mm	61.4 mm
	FF600R12KE4_E	1200 V	IGBT4 - E4	600 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
	FF600R12KE4	1200 V	IGBT4 - E4	600 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
	FF600R12KE4P	1200 V	IGBT4 - E4	600 A	1.75 V	1.7 V	62 mm	106.4 mm	61.4 mm
