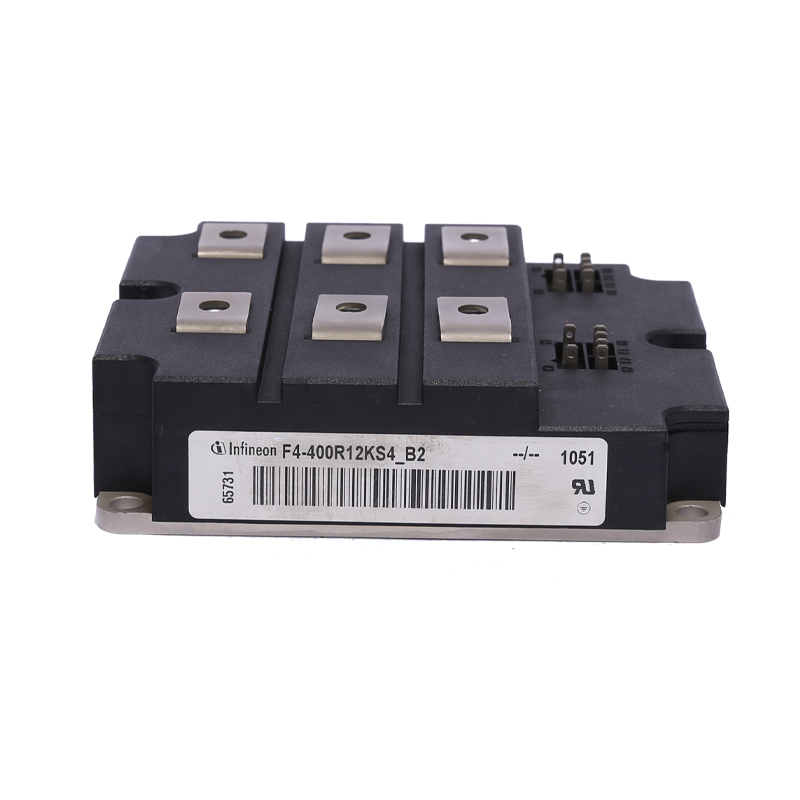

F4-400R12KS4B2
指标参数
| Parametrics | F4-400R12KS4B2 |
|---|---|

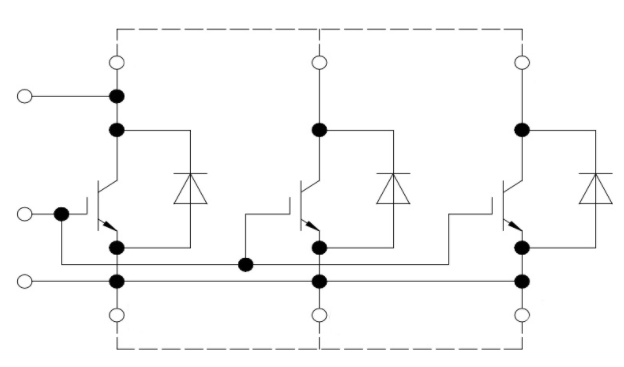

| Configuration | Single switch |
| Dimensions (width) | 140.0 mm |
| Dimensions (length) | 190.0 mm |
| Housing | IHM B |
| IC(nom) / IF(nom) | 400.0 A |
| IC max | 400.0 A |
| Qualification | Industrial |
| Technology | IGBT4 -B2 |
| VCE(sat) (Tvj=25°C typ) | 1.7 V |
| VF (Tvj=25°C typ) | 1.8 V |
| Voltage Class | 1200.0 V |
